NEXUS is a series of impedance sensors designed to measure phase concentration in a wide variety of applications, from fundamental research to industrial R&D and process control.

​

NEXUS sensors are compact and full-featured yet easy-to-use, offering benefits usually found only in larger and more expensive analyzers. We offer our customers different versions, which are adapted to the different fields of application.

​

The series uses advanced hardware and flow models for fluid characterization solutions. Designed for process monitoring and quality control of industrial liquids in production plant environments.

Impedance Sensors

Nexus Sensors use two impedance probes to measure one or multiple electrical properties of the test volume (pipelines, reaction chamber) with a very high time resolution under extreme operating conditions.

​

With the help of these probes, it is possible to record temporal phase fractions, flow velocities, and structure sizes with a time resolution of 10 ksample/s on both channels.


​Key characteristics:

​​

  • Industry 4.0 ready

  • Safe Non-radioactive design

  • Real-time measuring and flow characterization

  • Measuring range:

    • ​R200 - Resistance: 10 Ω – 5 MΩ

    • C200 - Capacitance: up to 250 nF

  • Channels: 2

  • Temporal resolution: up to 10000 samples/s/ch.

  • PTP Timestamp

  • Measurement resolution 16 bits/24 bits

  • Outputs/Communication:

    • 2x 4-20 mA or 2x 0-10 VDC

    • RS-485

    • Wi-Fi

    • Ethernet

  • Trigger in/out

  • Stainless steel electrodes

  • Ex Intrinsically Safe

FAST

NEXUS R200 performs conductance readings up to 10 KHz on both channels.

multiprobe

R200 are compatible with various probes (intrusive and non-intrusive) for processing monitoring

cloud

IoT dashboards help users and operators to remotely monitor the processes from anywhere in the world

easy

NEXUS Software and Sensor display use friendly menu screens to guide the user through setup, calibration, and operation.


Easy set-up

  • Plug & play (BNC or Ex connectors)

  • Wi-Fi communication

  • Real-time IIoT Dashboards

  • Friendly Software

Communication

  • Wi-Fi: 802.11 b/g/n

  • RS-485

  • TCP/IP - Ethernet

  • 2 x 4-20 mA output

  • 2 x 0-5 / 0-10 V output

Display Touchscreen 3.5"

  • Real-time monitoring/measurement

  • Sensor Settings

  • Calibration

  • Auto-range

  • Ex gland for power & communication

Multi-probe

  • Dual-channel

  • Intrusive/non-intrusive probes

  • Stainless steel

  • Compact design

Software and Data Analysis

NEXUS software allows multiple sensors monitoring through RS-485 or Wi-Fi communication. The software enables the operator to monitor the process depicting in real-time valuable information. Extra modules combine flow models and IA models to process and analyze flow information.


Some Features:

​

  • Real-time monitoring

  • Sensor remote configuration

  • Alarms

  • Report (.csv / xls)

  • Extra modules

    • Multiphase Flow Analysis

    • IA SPCX - predict oil, water, and gas production​

  • Matlab® and Python scripts package for additional data processing​

​


Applications

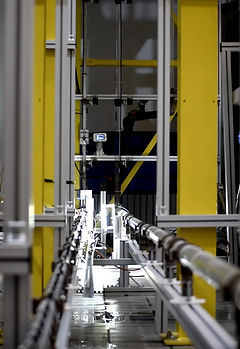

Pipeline Monitoring

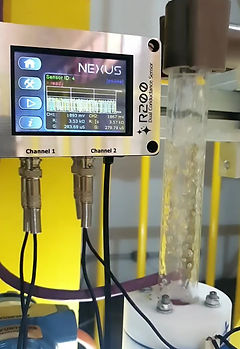

NEXUS R200

Parameters

​​​

Accurately characterize flow with advanced signal processing

​

  • 0-100% gas volume fraction (GVF)
  • 0-100% water liquid ratio (WLR)

  • Flow velocity

  • Flow structure detection


NEXUS Software

Nexus Subsea Flow Imaging

(further development)

SPCX MPFM Technology

​​​

Embedded flow assurance and machine learning models with fast multiphase direct flow imaging technology for

​

  • Phase fraction Measurement;

  • The concentration of hydrate inhibitor and salt concentration in produced water;

  • Gas hydrates prevention in deepwater gas pipelines;

  • ​Detection of undesirable events in oil and gas wells, preventing production losses, environmental accidents, and human casualties, and reduce maintenance costs.

​


NEXUS DF1
